Manipulating AST with JavaScript

November 22, 2019
Series: AST JavaScriptASTtransformdepth-first-search

Previously, I've talked about how to write a babel transformation, and I went one step deeper into Babel, by showing how you can create a custom JavaScript syntax, I demonstrated how Babel parses your code into AST, transforms it and generates back into code.

Armed with the knowledge and experience of playing the JavaScript AST with Babel, let's take a look at how we can generalize this knowledge into other languages as well.

When I refer to "other languages", I am actually referring to popular frontend languages, for example: JavaScript, TypeScript, Sass, CSS, HTML, markdown...

Of course, it does not limit to just frontend languages. It's just that it's easier to find a parser for these languages written in JavaScript than other languages, say C++ or Java.

The parsers

Like how we use Babel to do parsing and generating JavaScript, there are other libraries out there to help us with parsing and generating our language.

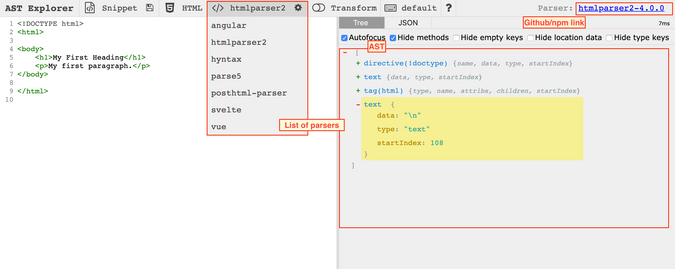

One easy trick to find these libraries is through https://astexplorer.net/.

ast explorer

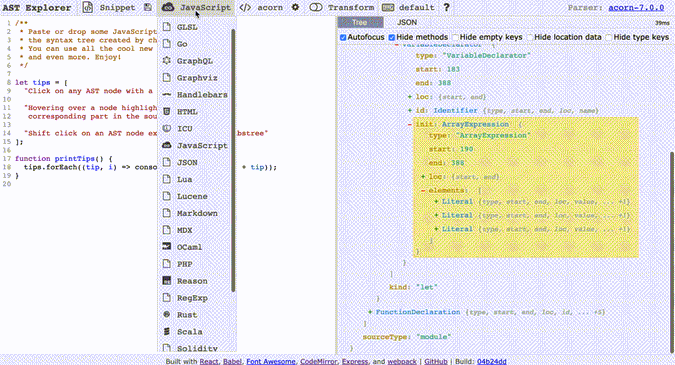

After you choose a language, you would see a list of parsers you can use to parse your language. For example, if you choose HTML, there's htmlparser2, hyntax, parse5... And when you choose one of the parsers, you can immediately see how the AST looks like on the right panel and the Github link to the parser on the top right.

ast explorer

Here is a un-exhaustive list of parsers, and it's parse and generate methods:

Language Parser parse generate
HTML parse5 parse5.parse(str) parse5.serialize(ast)
Markdown remark unified().use(remarkParse) unified().use(remarkStringify)
CSS css-tree csstree.parse(str) csstree.generate(ast)
Sass sast sast.parse(str) sast.stringify(ast)
JavaScript babel babel.parse(str) babel.generate(ast)
TypeScript TypeScript ts.createSourceFile(str) ts.createPrinter().printFile(ast)

As you can see most parsers provide both parsing and generating methods.

So in general, you can have the following as a template to write your code transformation code:

const code = fs.readFileSync('/file/to/code');
const ast = parserMethod(code);

// the magical transform function
// usually not a pure function
transform(ast);

const output = generatorMethod(ast);
fs.writeFileSync('/file/to/output', output, 'utf8');

You can, of course, transforming AST of one language to AST of another language, for example: Sass ➡️ CSS, Markdown ➡️ HTML, and use the generator of another language to generate out the code.

const lang1 = fs.readFileSync('/file/to/code');
const ast = parserMethodLang1(lang1);

// the magical transform function
// usually not a pure function
transformLang1ToLang2(ast);

const lang2 = generatorMethodLang2(ast);
fs.writeFileSync('/file/to/output', lang2, 'utf8');

Now armed with this template, let's talk about the more magical stuff, the transform function.

Traversing an AST

As the name AST suggests, AST uses a tree data structure. To hone the skills of manipulating AST, we need to recall our long distant memory of "Algorithm 101", the depth-first search (DFS) tree traversal algorithm.

Vaidehi Joshi wrote an amazing article on demystifying Depth-First Search, I don't think I can explain any better, so if you want to recap on depth-first search, please go and read her article before we continue.

Now you have a clearer idea of how depth-first search works, a depth-first search on an AST would look something like this:

function visit(ast) {
  // TODO: do something with this node

  const keys = Object.keys(ast);
  for (let i = 0; i < keys.length; i++) {
    const child = ast[key];
    // could be an array of nodes or just a node
    if (Array.isArray(child)) {
      for (let j = 0; j < child.length; j++) {
        visit(child[j]);
      }
    } else if (isNode(child)) {
      visit(child);
    }
  }
}

function isNode(node) {
  // probably need more check,
  // for example,
  // if the node contains certain properties
  return typeof node === 'object';
}

We can then fill up the TODO with our manipulation code.

If we find ourselves needing to do multiple traversals, with different AST manipulation, we would soon realize that mixing AST manipulation code with the traversal code is not clean enough. Naturally, you would realize it is cleaner to pass in a callback function that gets called every time we visit a node:

function visit(ast, callback) {
  callback(ast);

  const keys = Object.keys(ast);
  for (let i = 0; i < keys.length; i++) {
    const child = ast[key];
    if (Array.isArray(child)) {
      for (let j = 0; j < child.length; j++) {
        visit(child[j], callback);
      }
    } else if (isNode(child)) {
      visit(child, callback);
    }
  }
}

function isNode(node) {
  // probably need more check,
  // for example,
  // if the node contains certain properties
  return typeof node === 'object';
}

The visit function is now generic enough that you can use it for any AST:

visit(htmlAst, htmlAstNode => {
  /*...*/
});
visit(cssAst, cssAstNode => {
  /*...*/
});

Naturally, you would think that having the information of the parent node, and the key / index of the current node would be useful to have in the callback function:

function visit(ast, callback) {
  function _visit(node, parent, key, index) {
    callback(node, parent, key, index);

    const keys = Object.keys(node);
    for (let i = 0; i < keys.length; i++) {
      const child = node[key];
      if (Array.isArray(child)) {
        for (let j = 0; j < child.length; j++) {
          _visit(child[j], node, key, j);
        }
      } else if (isNode(child)) {
        _visit(child, node, key);
      }
    }
  }
  _visit(ast, null);
}

Now, we might think to ourselves, I dont want to get callback for every node visited, I just need callback for a certain node. You might be tempted to add a condition in the visit function:

function visit(ast, callback) {
  function _visit(node, parent, key, index) {
    if (someCondition(node)) {
      callback(node, parent, key, index);
    }
    ...

But you think twice: what if someone else wants to use visit but with a different condition for callback?

For most of the time, you want to callback only to a certain types of node. In that case, instead of passing in a callback function, you can pass in a map of node type to their respective callback functions:

function visit(ast, callbackMap) {
  function _visit(node, parent, key, index) {
    const nodeType = getNodeType(node);
    if (nodeType in callbackMap) {
      callbackMap[nodeType](node, parent, key, index);
    }
    ...
  }
}

visit(ast, {
  Identifier(node, parent, key, index) {
    // do something
  }
})

At this point, you maybe realize, hey, this looks so much like one of those AST traversing libraries! And yes, this is how they get implemented.

Now we can traverse the AST, and find the node that we are interested in, so the next step is to manipulate them.

Manipulating AST

Manipulating the AST can be categorized into 3 different operations:

  • Adding a node
  • Replacing a node
  • Removing a node

Adding a node

To add a node, you can assign it to a keyed property of your node:

function visitCallback(node, parent, key, index) {
  node.foo = createNewNode();
}

or push the new node, if the keyed property is an array:

function visitCallback(node, parent, key, index) {
  node.foo.push(createNewNode());
}

To add a node as a sibling, you may need to access the node's parent:

function visitCallback(node, parent, key, index) {
  // add as first sibling
  parent[key].unshift(createNewNode());
  // add as last sibling
  parent[key].push(createNewNode());
  // add as next sibling
  parent[key].splice(index + 1, 0, createNewNode());
  // add as prev sibling
  parent[key].splice(index, 0, createNewNode());
}

Replacing a node

To replace the current node to another node, update the key property of the current node's parent:

function visitCallback(node, parent, key, index) {
  parent[key] = updatedNode();
}

If the key property of the parent is an array:

function visitCallback(node, parent, key, index) {
  parent[key][index] = updatedNode();
}

Removing a node

To remove the current node, delete the key property of the current node's parent:

function visitCallback(node, parent, key, index) {
  delete parent[key];
}

If the key property of the parent is an array:

function visitCallback(node, parent, key, index) {
  parent[key].splice(index, 1);
}

The operations of adding, replacing, and removing nodes are so common that, they are usually implemented as a util function.

However, there's one important step that I did not cover: after you mutate the node, you need to make sure that the traversal still works fine.

For a node that is a property of a key of its parent, adding, replacing and removing them are usually fine. Except for the replace operation, you might need to revisit the "current node", which is the new replacing node.

However, for node that are in an array, you need to take special care to update the array index of the loop:

function visit(ast, callbackMap) {
  function _visit(node, parent, key, index) {
    // ...
    if (Array.isArray(child)) {
      for (let j = 0; j < child.length; j++) {
        _visit(child[j], node, key, j);
        if (hasRemoved()) {
          // offset the index
          j--;
        }
      }
    }
    // ...
  }
}

But how do you know that the current node was removed?

Well, knowing when a node got removed is sometimes a secret that lies within the remove util function from the tree traversal library.

It could be as simple as setting a flag when you call remove:

let _hasRemoved = false;
function remove(node, parent) {
  _hasRemoved = true;
  // proceed to remove current node
}
function hasRemoved() {
  let result = _hasRemoved;
  // reset back
  _hasRemoved = false;
  return result;
}

// function _visit(...) { ...
for (let j = 0; j < child.length; j++) {
  _visit(child[j], node, key, j);
  if (hasRemoved()) {
    // ...
  }
}

// ...somewhere in your visitCallback
function visitCallback(node, parent, key, index) {
  remove(node, parent);
}

But sometimes, instead of having to import the remove util from the tree traversal library, the remove function is available in this of the visitCallback:

function visit(ast, callbackMap) {
  function _visit(node, parent, key, index) {
    let _hasRemoved = false;
    const _this = {
      // don't need to take in `node` and `parent`,
      // because it know exactly what they are
      remove() {
        _hasRemoved = true;
        // proceed to remove current node
      },
    };

    // ...
    if (nodeType in callbackMap) {
      callbackMap[nodeType].call(_this, node, parent, key, index);
    }
  }
}

// ...somewhere in your visitCallback
function visitCallback(node, parent, key, index) {
  this.remove();
}

Now you learned the 3 basic operations of manipulating the AST, you maybe wonder how exactly is to use these basic operations to write a codemod or an AST transform plugin?

Well, in my step-by-step guide, I've explained that, you can use AST explorer like http://astexplorer.net/ or Babel AST Explorer to help you.

You need to:

  • Know how the part of the code you want to change look like in the AST, so you can target the specific type of the node, and
  • Know how does the final output you wish to see look like in the AST, so you know what nodes to create, update or remove.

So we are going to elaborate more on these 2 steps specifically.

Targeting a node

Node targeting, most of the times, is just a lot of ===.

For example, if you want to target a <figure> with a class foo that contains an <img> and a <figcaption> in htmlparser2:

<figure>
  <img class="foo" />
  <figcaption>lorem ipsum</figcaption>
</figure>

You need to check:

function visit(node) {
  if (
    /* 1. is node <figure> */
    node.type === 'tag' &&
    node.name === 'figure' &&
    /* 2. is node contain class `foo` */
    node.attribs.class === 'foo' &&
    /* 3. is node children contain <img> */
    node.children.find(
      child => child.type === 'tag' && child.name === 'img'
    ) !== undefined &&
    /* 4. is node children contain <figcaption> */
    node.children.find(
      child => child.type === 'tag' && child.name === 'figcaption'
    ) !== undefined
  ) {
    // do something
  }
}

To make it less verbose, we can refactor each check into reusable functions:

function isTag(node, name) {
  return node.type === 'tag' && node.name === name;
}
function hasAttr(node, key, value) {
  return node.attribs[key] === value;
}
function hasChild(node, fn) {
  return node.children.find(fn) !== undefined;
}
function visit(node) {
  if (
    /* 1. is node <figure> */
    isTag(node, 'figure') &&
    /* 2. is node contain class `foo` */
    hasAttr(node, 'class', 'foo') &&
    /* 3. is node children contain <img> */
    hasChild(child => isTag(child, 'img')) &&
    /* 4. is node children contain <figcaption> */
    hasChild(child => isTag(child, 'figcaption'))
  ) {
    // do something
  }
}

Creating a node

There are a few ways you can create an AST node.

The simplest and crudest way is to manually create the node object. Most of the time, the node object is a JavaScript object. So you can just create them manually:

const newNode = {
  type: 'Identifier',
  name: 'foo',
};

It may become unwieldy when creating large, complex AST nodes, so sometimes library decides to provide builder functions, like @babel/types to simplify node creation and provide default values:

const newNode = t.identifier('foo');

const newNode2 = t.functionDeclaration(
  'bar',
  [t.identifier('foo')],
  [
    t.expressionStatement(
      t.callExpression(
        t.memberExpression(t.identifier('console'), t.identifier('log'), false),
        [t.identifier('foo')]
      )
    ),
    t.returnStatement(t.identifier('foo')),
  ]
);

It looked more concise and tidier, but it is hard to comprehend and grasp what node it is creating.

So, a better way of creating complex AST node, is to use the parse function + string:

const newNode2 = babelParser.parse(`
  function bar(foo) {
    console.log(foo);
    return foo;
  }
`).program.body[0];

const newNode3 = cssTree.parse(
  `
  .foo {
    color: red;
  }
`,
  { context: 'rule' }
);

For Babel, there's an amazing util called @babel/template, where you can use template literals to create AST node:

const newNode4 = template.statement`
  console.log(foo);
`;

// placeholder can be an AST node or string
const newNode5 = template.statement`
  function bar(foo) {
    ${newNode4}
    alert("${'hello world'}")
    return foo;
  }
`;

Summary

We've gone through:

  • How to traverse an AST, using depth-first search algorithm,
  • The 3 basic AST manipulations, addition, replacement, and removal,
  • How to target a node in AST, and
  • How to create an AST node

Manipulating AST with JavaScript using Babel

If you like what you've read so far, and want to learn how you could do it with Babel. I've created a video course, showing you step-by-step, how to write a babel plugin and codemod.

In the video course, I detailed tips and tricks, such as how to handle scope, how to use state, and also nested traversals.

Sounds interesting, let's take a look at the video course
