SVG Filters 101

[ Source ]

  • defined in <filter> element
  • define a series of one or more filter primitives
  • 1 filter primitive performs 1 single fundamental graphic operation on one or more inputs

filter primitives

  • filter primitives named start with fe, short for "filter effect"
  • filter primitives take 1-2 inputs and output 1 result
  • in and in2 attribute for input, result attribute for output
  • input takes in result, SourceGraphic and SourceAlpha
<svg>
  <filter id="my-filter">
    <!-- take in 1 input `in` -->
    <feGaussianBlur in="INPUT_NAME" />

    <!-- take in 2 inputs `in` and `in2` -->
    <feComposite in="INPUT_NAME_1" in2="INPUT_NAME_2" />

    <!-- `result` defines the result name,
		which can be passed in as input for the next filter -->
    <feGaussianBlur result="OUTPUT_1" />
    <feGaussianBlur in="OUTPUT_1" />

    <!-- use the source as input for the filter primitive -->
    <!-- apply filter on the source element -->
	<feGaussianBlur in="SourceGraphic" />

    <!-- apply filter on the alpha channel of the source element,
		the silhouette of the source -->
	<feGaussianBlur in="SourceAlpha" />
  </filter>
</svg>

Filter region

  • filter region is based on the bounding box of the element
  • filter result beyond filter region will be clipped off
  • default filter region extends 10% the width and height of bounding box in all 4 directions
<!-- x, y, width, height sets the filter region -->
<filter
  x="-10%" y="-10%" width="120%" height="120%"
  filterUnits="objectBoundingBox">
  <!-- filter primitives here -->
</filter>
  • use <feFlood> to figure out the filter region
<filter>
  <feFlood
    flood-color="#EB0066" flood-opacity="0.5"
    result="flood"></feFlood>
  <feMerge>
    <feMergeNode in="SourceGraphic" />
    <feMergeNode in="flood" />
  </feMerge>
</filter>

Create a drop shadow

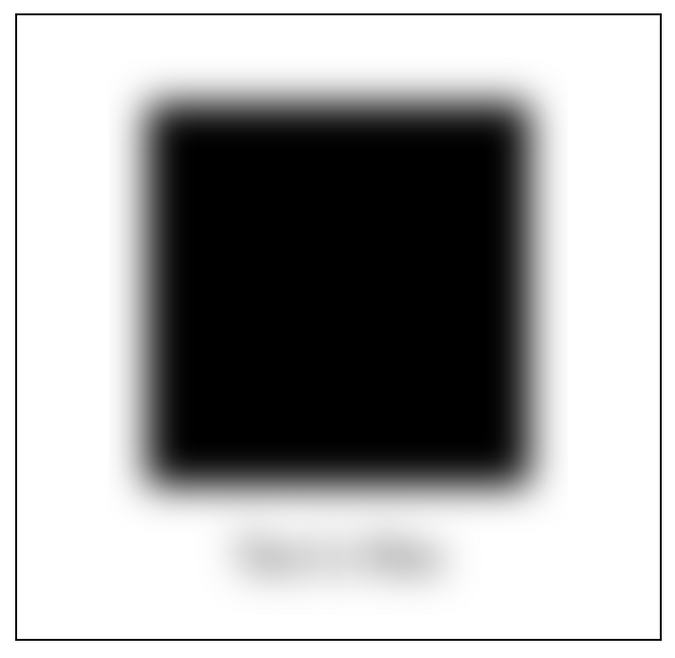

  1. Blur the silhouette of the layer
<filter id="my-filter">
  <feGaussianBlur
    in="SourceAlpha" stdDeviation="10" result="DROP" />
</filter>

step-1

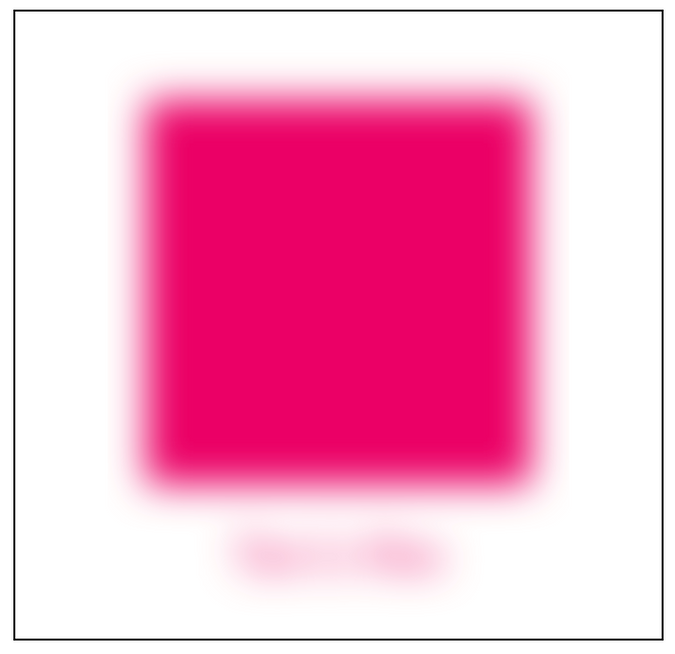

  1. Composite the blur layer with a solid color layer to create a colored blur
<filter id="my-filter">
  <feGaussianBlur in="SourceAlpha" stdDeviation="10" result="DROP"></feGaussianBlur>
  <feFlood flood-color="#EB0066" result="COLOR" />
  <feComposite in="COLOR" in2="DROP" operator="in" result="SHADOW" />
</filter>

step-2

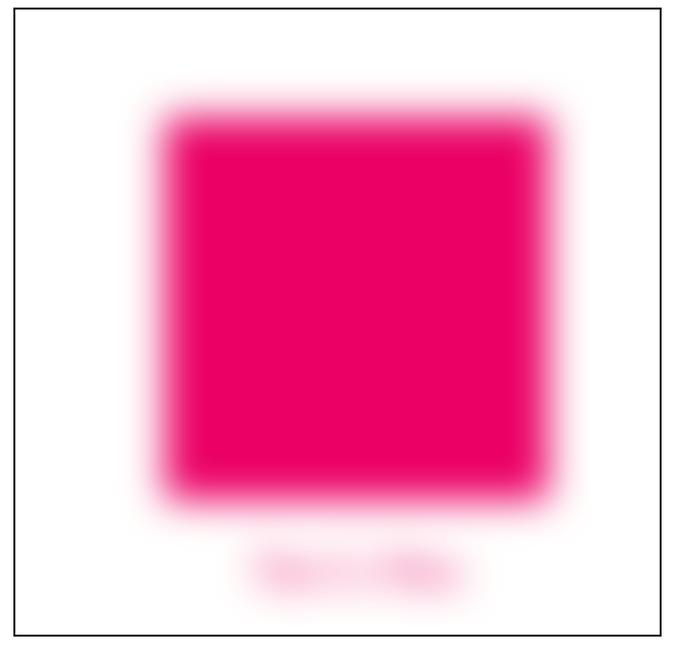

  1. Shift the shadow bottom-right with <feOffset>
<filter id="my-filter">
  <feGaussianBlur in="SourceAlpha" stdDeviation="10" result="DROP"></feGaussianBlur>
  <feFlood flood-color="#EB0066" result="COLOR" />
  <feComposite in="COLOR" in2="DROP" operator="in" result="SHADOW" />
  <feOffset in="SHADOW" dx="10" dy="10" result="DROPSHADOW" />
</filter>

step-3

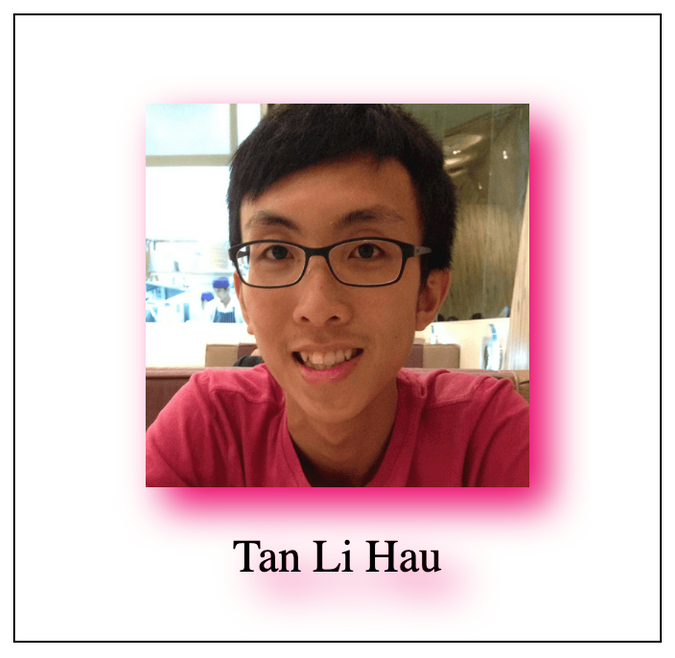

  1. Combine the shadow with the original image
  • layer merge in order of declaration, latter layer stacks on top of previous layer
<filter id="my-filter">
  <feGaussianBlur in="SourceAlpha" stdDeviation="10" result="DROP"></feGaussianBlur>
  <feFlood flood-color="#EB0066" result="COLOR" />
  <feComposite in="COLOR" in2="DROP" operator="in" result="SHADOW" />
  <feOffset in="SHADOW" dx="10" dy="10" result="DROPSHADOW" />
  <feMerge>
    <feMergeNode in="DROPSHADOW" />
    <feMergeNode in="SourceGraphic" />
  </feMerge>
</filter>

step-4

Finessing feColorMatrix

[ Source ]

<filter id="linear">
  <feColorMatrix
    type="matrix"
    values="R 0 0 0 0
            0 G 0 0 0
            0 0 B 0 0
            0 0 0 A 0 "/>
</filter>
/* R G B A 1 */
1 0 0 0 0 // R = 1*R + 0*G + 0*B + 0*A + 0
0 1 0 0 0 // G = 0*R + 1*G + 0*B + 0*A + 0
0 0 1 0 0 // B = 0*R + 0*G + 1*B + 0*A + 0
0 0 0 1 0 // A = 0*R + 0*G + 0*B + 1*A + 0

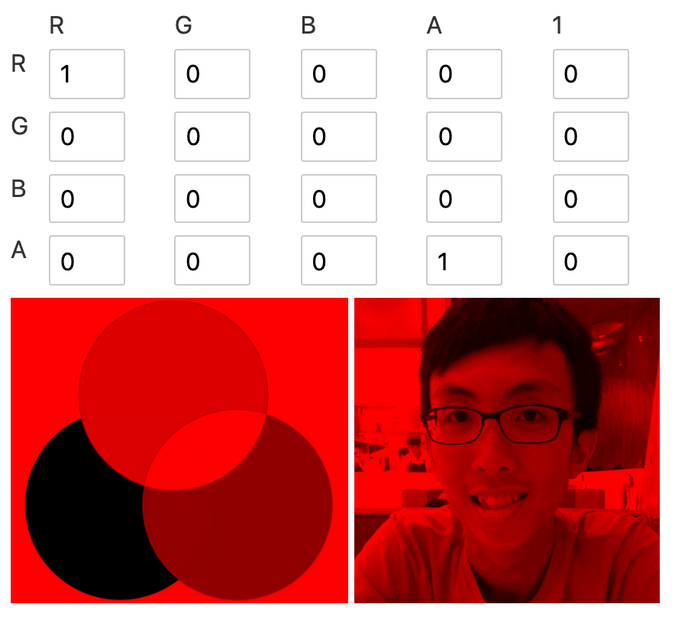

1. Colorizing

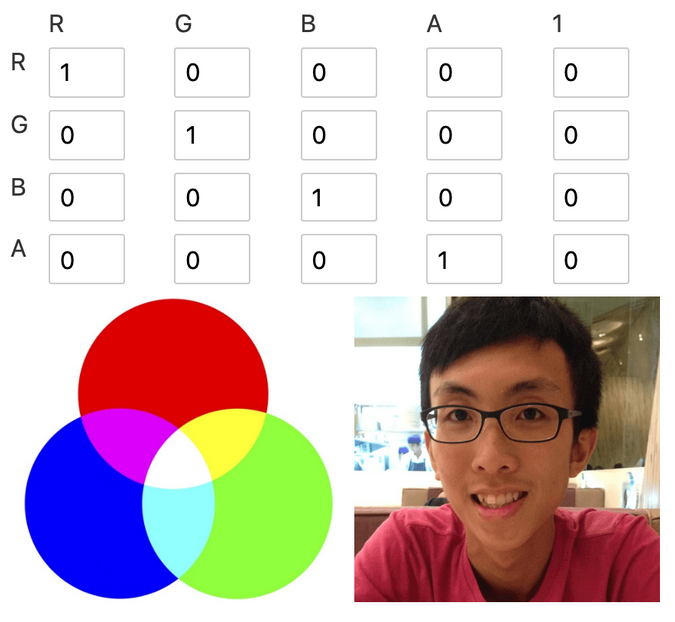

colorise default

  • Removing other color to colorise image into the remaining color
  • colorise red -> remove blue & green colorise red

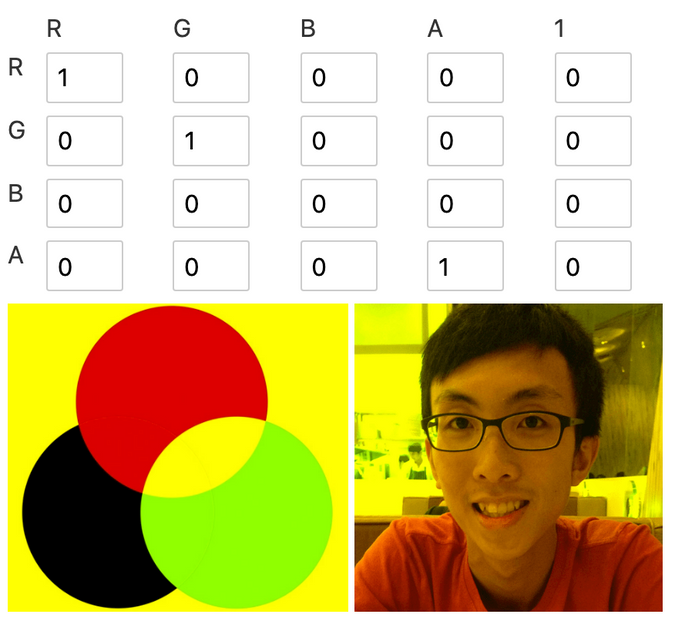

  • colorise yellow -> remove blue (red + green = yellow) colorise yellow

2. Alpha values

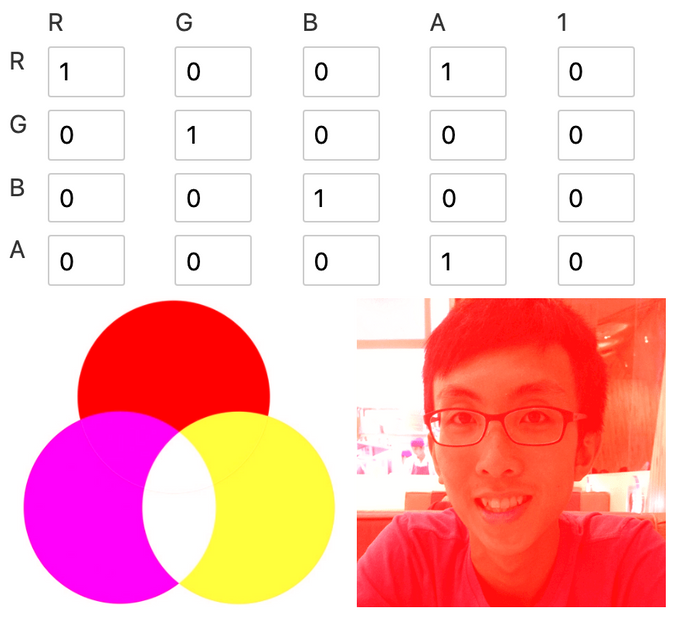

  • add opacity level to the red channel

    • any red remaining red
    • green -> yellow (red + green = yellow)
    • blue -> magenta (red + blue = magenta) red filter

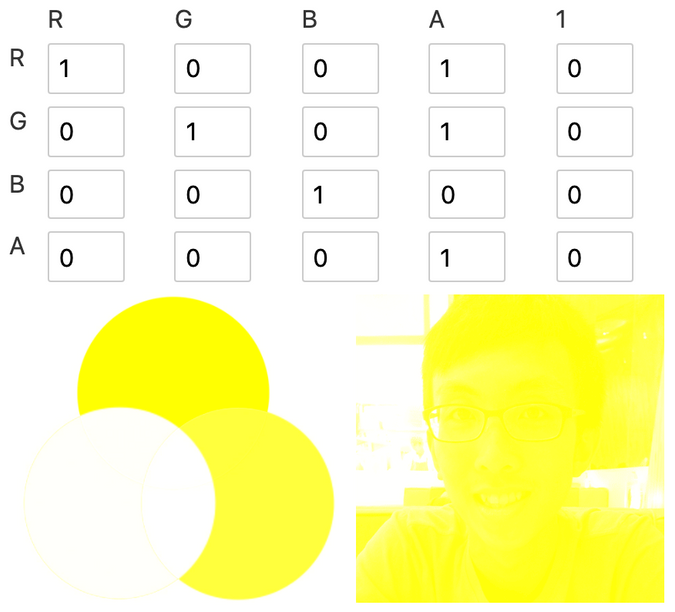

  • hard yellow filter yellow filter

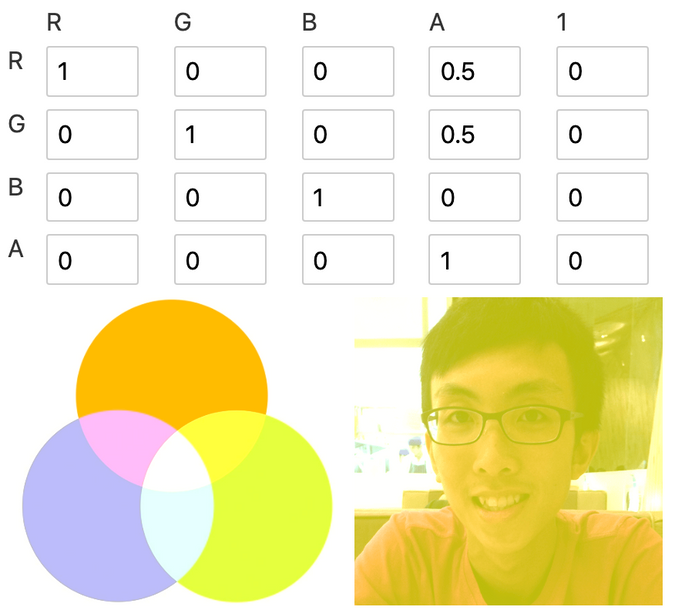

  • have a value some where between 0-1 to see the mixture in the shadow yellow filter 2

  • negative value could offset the channel by the amount of opacity negative alpha
    • the following 2 color matrix is identical
<filter>
  <feColorMatrix
    type="matrix"
    values="1  0  0  0  0
            0  1  0  0  0
            0  0  1 -1  0
            0  0  0  1  0 "/>
</filter>

<filter>
  <feColorMatrix
    type="matrix"
    values="1  0  0  0  0
            0  1  0  0  0
            0  0  0  0  0
            0  0  0  1  0 "/>
</filter>

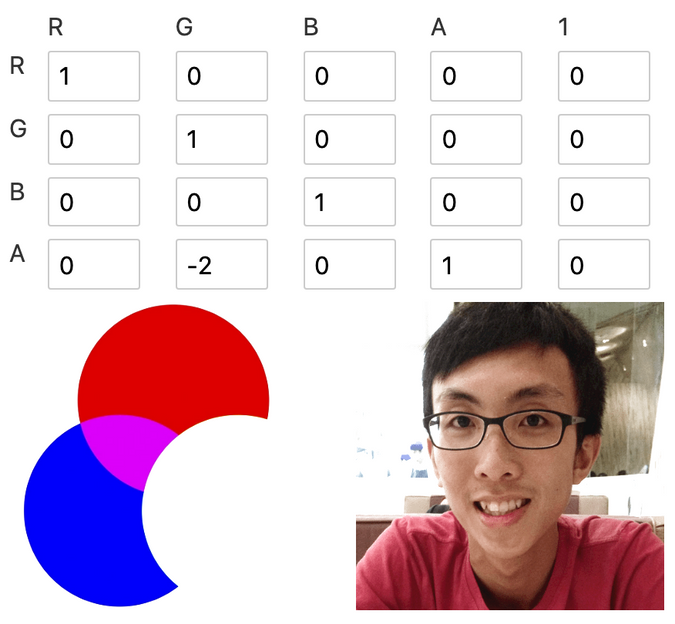

3. Blowing out channels

  • turn 1 color to white
  • set the alpha channel to -2 blow-out-green

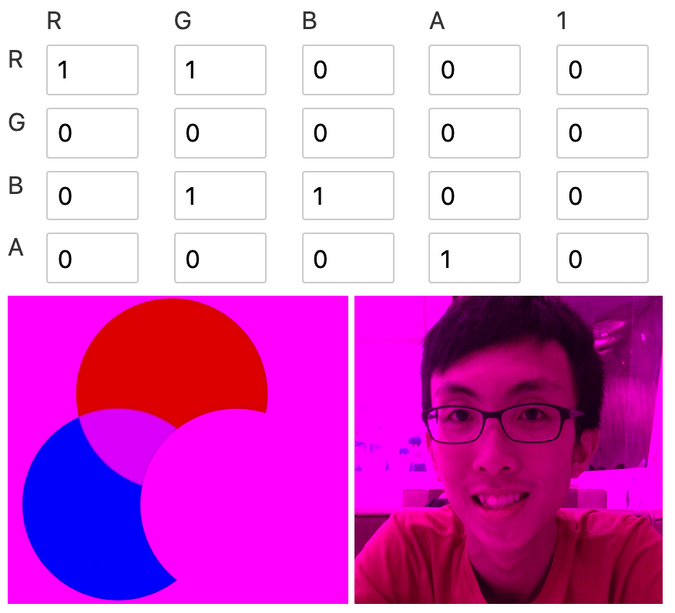

4. Change color

  • No more green, any green looks like magenta now. (luminosity of green is lost) change-color

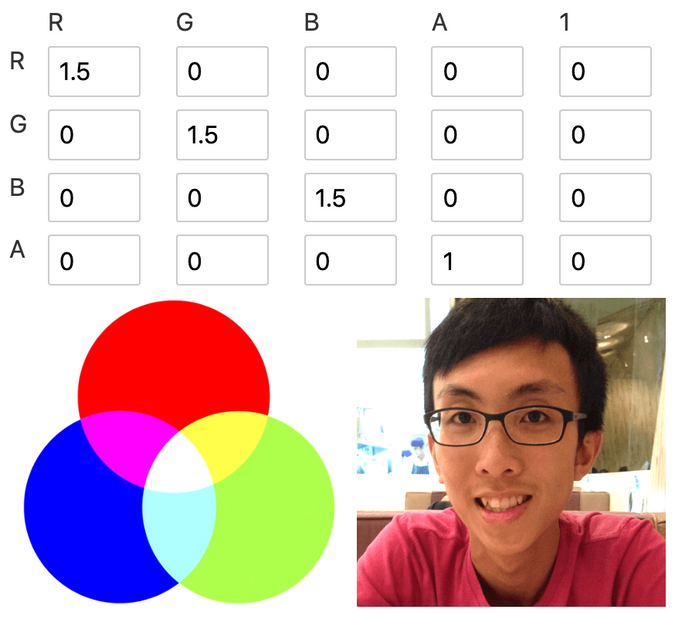

5. Lighten or darken

  • increase intensity to lighten, decrease to darken lighten darken

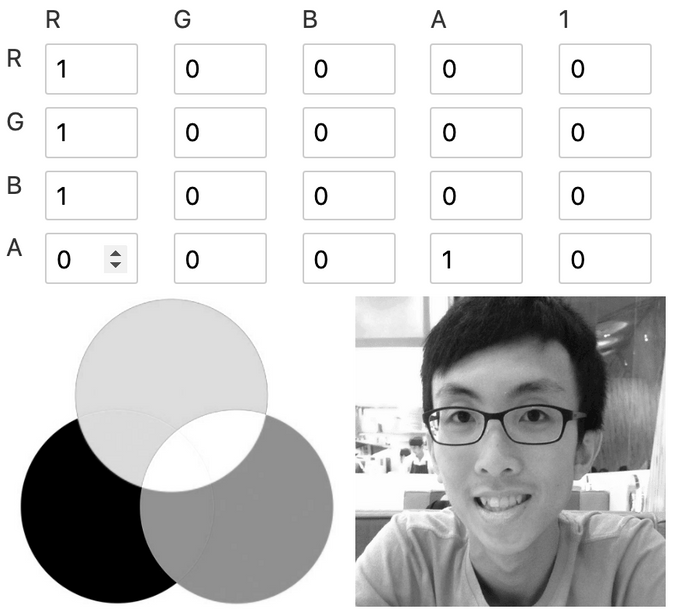

6. Grayscale

  • make sure red, green, blue have the same value grayscale

Outline Text with <feMorphology>

[ Source ]

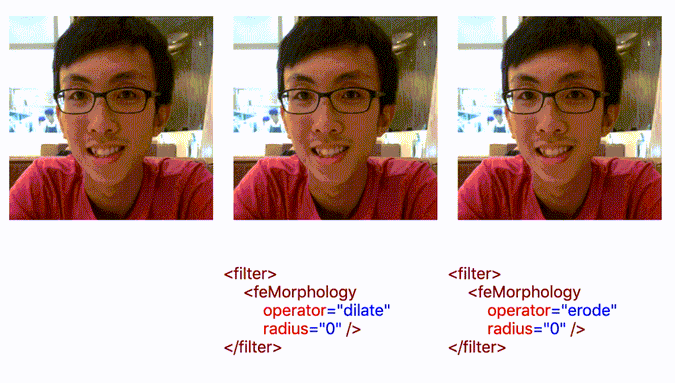

  • 🖼 image size gets smaller when erode, larger when dilate
  • 🖼 image looks like painted with large brush 🖌
  • 📝 erode sets each pixel to the darkest / most transparent neighbor
  • 📝 dilate sets each pixel to the brightest / least transparent neighbor
<filter>
  <feMorphology
    in=".." result=".."
    operator="dilate || erode" radius="" />
</filter>

feMorphology

Radius: 0

REPL to see effect with different radius.

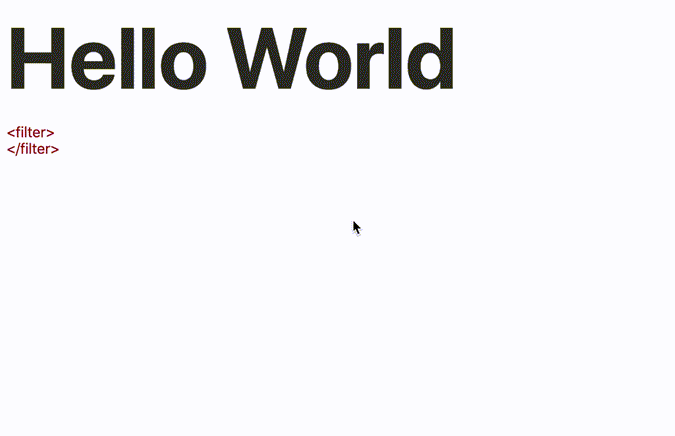

Adding Colored Outline to Text with <feMorphology />

1️⃣ expand the text with <feMorphology operator="dilate" /> 2️⃣ colorize via <feFlood> with solid color and <feComposite /> 3️⃣ merge the expanded colored text with the original text

<h1 style="filter: url(#outline)">Hello World</h1>

<svg>
	<filter id="outline">
		<feMorphology result="THICK" operator="dilate" radius="4" />
		<feFlood flood-color="#32DFEC" flood-opacity="1" result="COLOR" />
		<feComposite in="COLOR" in2="THICK" operator="in" result="OUTLINE" />
		<feMerge>
			<feMergeNode in="OUTLINE" />
			<feMergeNode in="SourceGraphic" />
		</feMerge>
	</filter>
</svg>

feMorphology outline text

REPL to visualise <feMorphology>

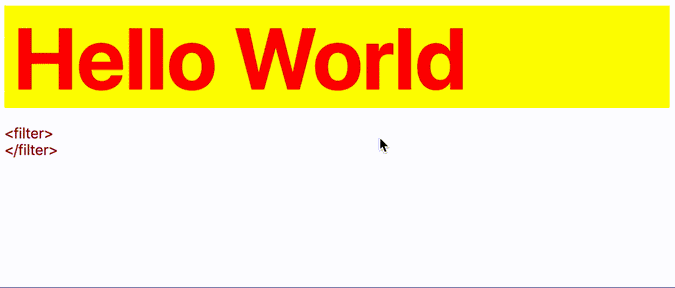

Knockout text with <feMorphology />

1️⃣ expand the text with <feMorphology operator="dilate" /> 2️⃣ composite with the source with <feComposite /> using out operator

<h1 style="filter: url(#outline)">Hello World</h1>

<svg>
	<filter id="outline">
		<feMorphology result="THICK" operator="dilate" radius="4" />
		<feComposite in="THICK" in2="SourceGraphic" operator="out" />
	</filter>
</svg>

feMorphology knockout text

Hello World

REPL to visualise the build up the knock-out text.
